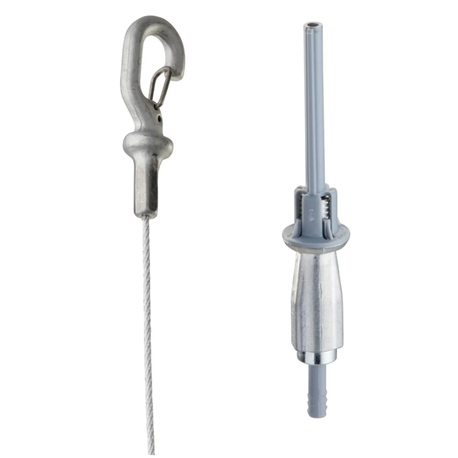

nVent CADDY Speed Link SLS with Hook, 3 mm Wire, 3.3' #SLS3L1

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

nVent CADDY Speed Link SLS with Hook, 3 mm Wire, 3.3'

Part #: SLS3L1

Qty *

Please select all above options before adding to cart.

Construction Applications Q&A

Construction
Category	Speed Link SLK System
Category Description	nVent CADDY Speed Link SLS with Hook, 3 mm Wire, 3.3' (1 m) Length
Category Features	• Complete system includes wire, locking device and pre-assembled hook end fitting • Hooks to a wide range of nVent CADDY fasteners Speed Link SLS System • Fastens to the building structure or hanging services by looping around and hooking to wire rope • Easy to remove for applications requiring maintenance • Spring latch helps provide secure connection • Insert cable through hole and use bottom side of hook as an end stop
Material	Steel; Zinc Alloy; Polypropylene
A	2.27"
B	0.91"
C	0.24"
Static Load	150
Static Load Safety Factor	5:01
Wire Rope Length	3.3'
Width	0.80"
Weight	28.200
Finish	Electrogalvanized

The 2 mm locking device is compatible with C-Channel Types E0 and E0L. The 3 mm locking device is compatible with C-Channel Types E1, E2, E2L, E3, E4, E5, Strut Channel Type C, Slotted, Strut Channel Type A, Slotted, Strut Channel Type AS, Perforated, Strut Channel Type CC, Slotted, Strut Channel Type AA, Slotted. Total load per wire on a multi-tier trapeze must not exceed static load.
