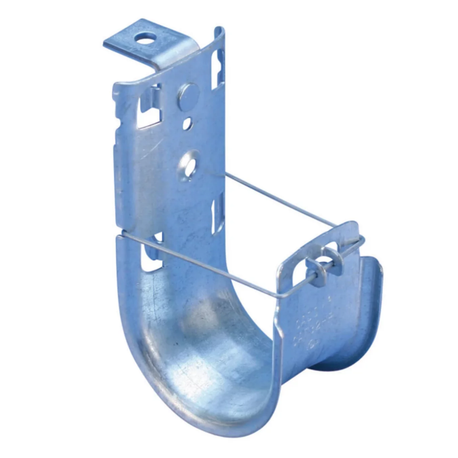

nVent CADDY Cat HP J-Hook with Angle Bracket #CAT16HPAB

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

nVent CADDY Cat HP J-Hook with Angle Bracket

Part #: CAT16HPAB

Qty *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category	Cable Support Systems
Sub Category	CAT HP Assemblies
Category Description	nVent CADDY Cat HP J-Hook with Angle Bracket, 1" (25 mm) dia, 1/4" (6.3 mm) Hole
Category Features	• Ideal for attaching to concrete, steel or wood surfaces • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables • Cost effective alternative to expensive cable tray
Category Standards	• Complies with EN 50174-2 • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Material	Steel
Area	1.07in²
Cable Capacity Cat5e	20
Cable Capacity6	15
Cable Capacity6A	10
Diameter	1"
Finish	Pregalvanized
In Stock	Stock

• Non-continuous supports may not exceed spacing of 5' (1.5 m) per TIA 569-C.9.7 and EN 50174-2.
• Cable capacity is calculated based on a 70% fill rate.
