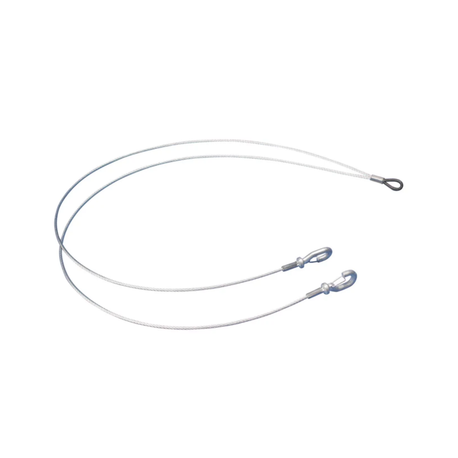

nVent CADDY Speed Link Y-Hook with Eyelet Extension, 3 mm Wire #SLD3YH500

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

nVent CADDY Speed Link Y-Hook with Eyelet Extension, 3 mm Wire

Part #: SLD3YH500

Qty *

Please select all above options before adding to cart.

Construction Applications Q&A

Construction
Category	Speed Link Extensions
Category Description	nVent CADDY Speed Link Y-Hook with Eyelet Extension, 3 mm Wire, 19.6" (0.5 m) Y-Length
Category Features	• Double hook offers easy attachment to basket tray, cable tray or lighting • Convenient design allows one hook to be temporarily detached for maintenance or to add cables to the tray • Y-design provides improved stability • Spring latch helps provide secure connection
Material	Steel
A	2.3"
B	0.9"
C	1/ 4"
Static Load	200
Static Load Safety Factor	5:01
Wire Rope Y Length YL	19.6"
Weight	18.300
Finish	Electrogalvanized

Speed Link locking device not included. The 2 mm locking device is compatible with C-Channel Types E0 and E0L.
The 3 mm locking device is compatible with C-Channel Types E1, E2, E2L, E3, E4, E5, Strut Channel Type C, Slotted, Strut Channel Type A, Slotted, Strut Channel Type AS, Perforated, Strut Channel Type CC, Slotted, Strut Channel Type AA, Slotted. Total load per wire on a multi-tier trapeze must not exceed static load.
