Panduit PV4-12R-E, Wire Termination #PV4-12R-E

Home > Panduit PV4-12R-E, Wire Termination
Panduit PV4-12R-E, Wire Termination

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit PV4-12R-E, Wire Termination

Download Spec Sheet

Panduit PV4-12R-E, Wire Termination

Part #: PV4-12R-E

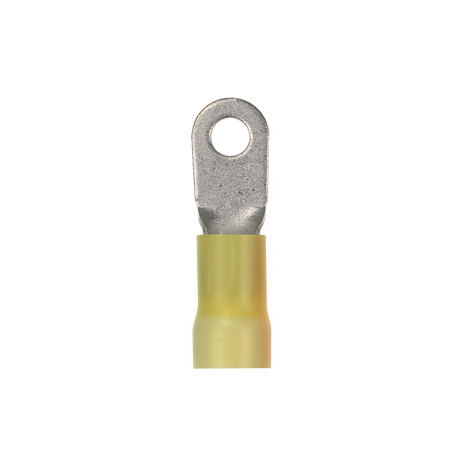

Ring Terminal, large wire, 4 AWG, 1/2" stud size, vinyl insulated, standard package. Sold in and priced as packages of 20.

Please select all above options before adding to cart.

Barrel Type Funnel Entry
Carton Qty 200
Carton Weight 4.2500 pounds
Category Connectors & Terminators
Color Coding Yellow
Finish Tin-Plated
Manufacturer Panduit
Max Operating Temperature 105 degrees celsius
Outside Diameter Inches 0.45 inches
Overall Length 2.04 inches
Package Qty 20
Package Volume 0.0098 cubic feet
Package Weight 0.4250 pounds
Product Class Wire Termination
Standard Carton Height 4 inches
Standard Carton Length 10.3 inches
Standard Carton Width 4.1 inches
Standard Package Height 2 inches
Standard Package Length 4 inches
Standard Package Width 2 inches
UPC 74983871056
Width 0.86 inches
