Panduit PV14-6RNB-3K, Wire Termination

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit PV14-6RNB-3K, Wire Termination

Download Spec Sheet

Panduit PV14-6RNB-3K, Wire Termination

Part #: PV14-6RNB-3K

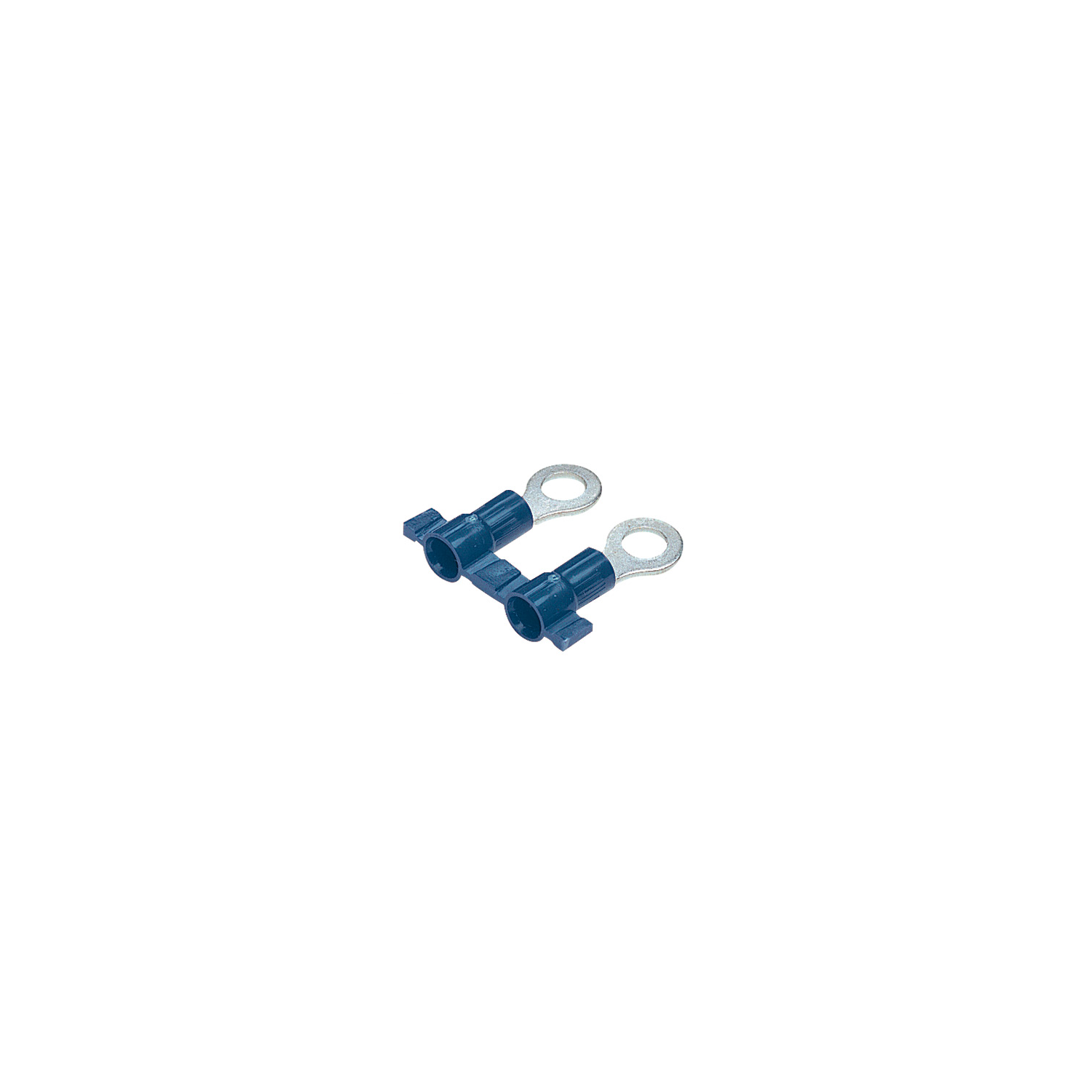

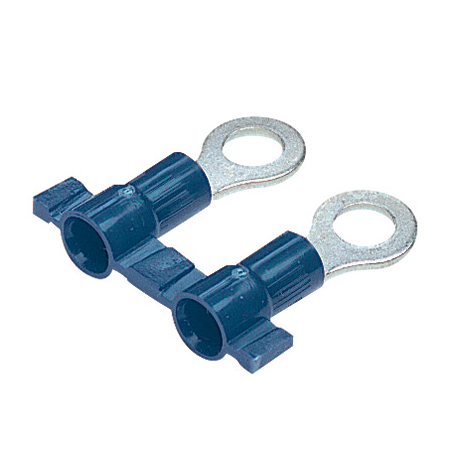

Ring Terminal, narrow tongue, vinyl insulated, funnel entry, plastic insulation crimp, 16 – 14 AWG wire range, #6 stud size. Sold in and priced as packages of 3000.

Please select all above options before adding to cart.

Barrel Type Funnel
Category Connectors & Terminators
Color Coding Blue
Finish Tin-Plated
Manufacturer Panduit
Max Operating Temperature 105 degrees celsius
Overall Length 0.76 inches
Package Qty 3000
Package Volume 0.9208 cubic feet
Package Weight 8.1000 pounds
Product Class Wire Termination
Standard Carton Length 662.94 millimeters
Standard Package Height 2.4 inches
Standard Package Length 26.1 inches
Standard Package Width 25.4 inches
UPC 74983803552
Width 0.25 inches
