Panduit P2-56R-X, Wire Termination

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit P2-56R-X, Wire Termination

Download Spec Sheet

Panduit P2-56R-X, Wire Termination

Part #: P2-56R-X

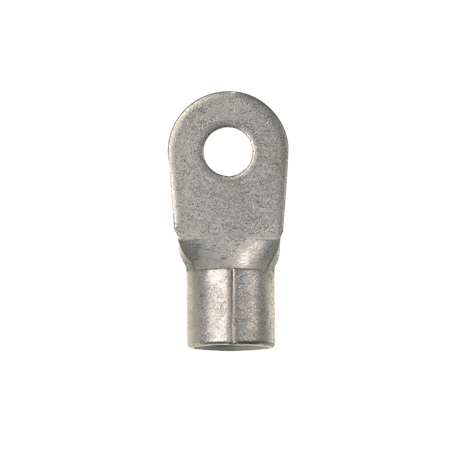

Ring terminal, large wire, 2 AWG, 5/16" stud size, non-insulated, standard package. Sold in and priced as packages of 10.

Please select all above options before adding to cart.

Barrel Type Brazed Seam
Carton Qty 100
Carton Weight 2.4000 pounds
Category Connectors & Terminators
Color Coding Metallic
Finish Tin-Plated
Manufacturer Panduit
Max Operating Temperature 150 degrees celsius
Outside Diameter Inches 0.48 inches
Overall Length 1.46 inches
Package Qty 10
Package Volume 0.0074 cubic feet
Package Weight 0.2400 pounds
Product Class Wire Termination
Standard Carton Height 3.65 inches
Standard Carton Length 9.35 inches
Standard Carton Width 4.4 inches
Standard Package Height 1.75 inches
Standard Package Length 3.6 inches
Standard Package Width 1.8 inches
UPC 74983870479
Width 0.68 inches
