Panduit P14-14R-M Ring Terminals #P14-14R-M

Home > Panduit P14-14R-M Ring Terminals
Panduit P14-14R-M, Ring Terminals

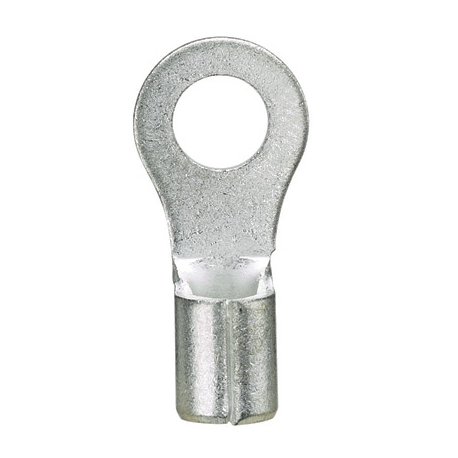

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit P14-14R-M, Ring Terminals

Download Spec Sheet

Panduit P14-14R-M, Ring Terminals

Part #: P14-14R-M
Ring Terminal, 18 €“ 14 AWG, 1/4" stud size, non-insulated, bulk package. . Sold in and priced as packages of 1000

Please select all above options before adding to cart.

Barrel Type Brazed Seam
Carton Qty 0
Carton Weight 0.000 pounds
Category Connectors & Terminators
Color Coding Silver
Finish Tin-Plated
Manufacturer Panduit
Max Operating Temperature 150 degrees celsius
Overall Length 0.91 inches
Package Qty 1000
Package Volume 0.597 cubic feet
Package Weight 2.600 pounds
Product Class Ring Terminals
Standard Carton Length 180.34 millimeters
Standard Package Height 3.35 inches
Standard Package Length 7.1 inches
Standard Package Width 3.35 inches
UPC 74983802234
Width 0.46 inches
