Panduit FSD83-12-C Ferrules #FSD83-12-C

Home > Panduit FSD83-12-C Ferrules
Panduit FSD83-12-C, Terminals & Terminal Kits

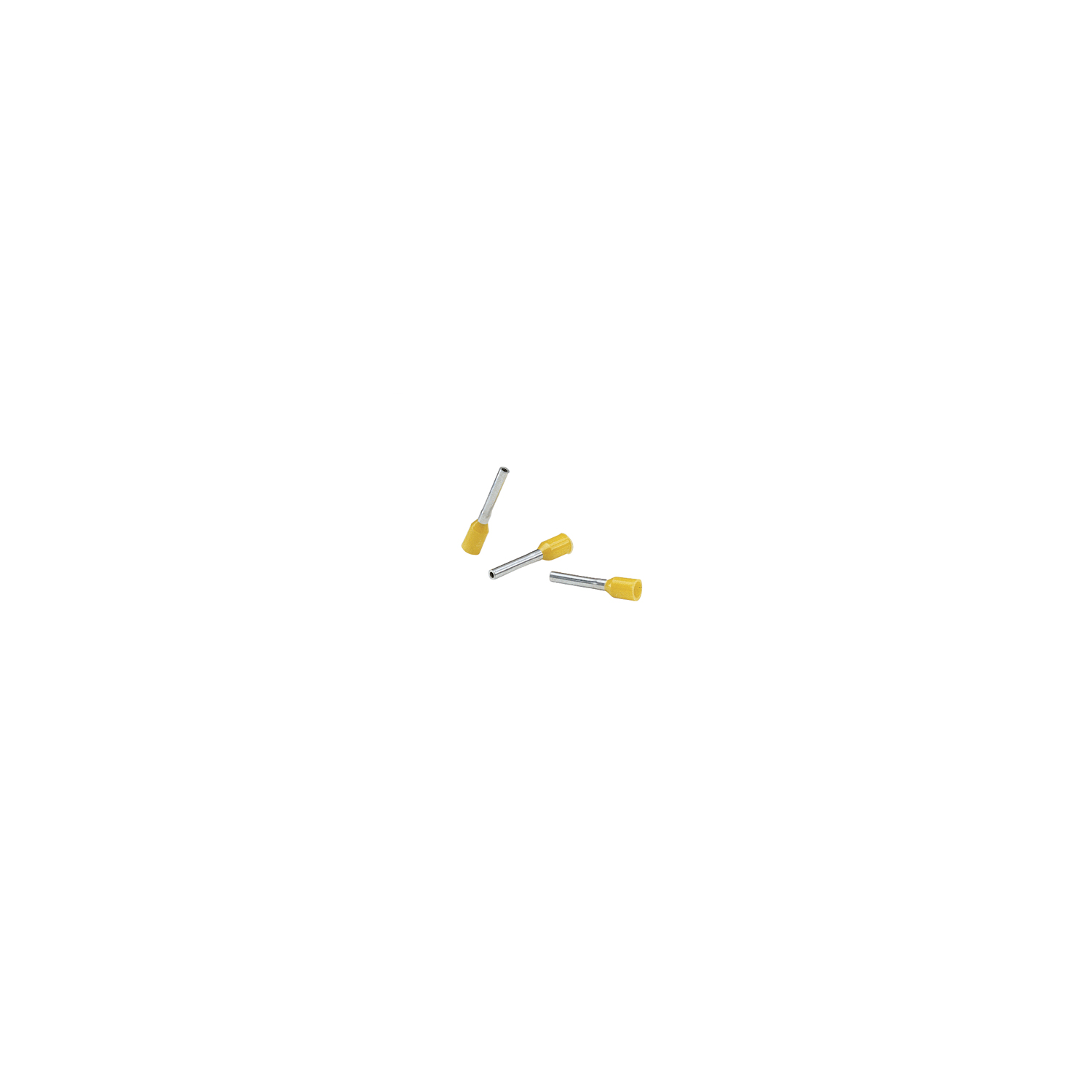

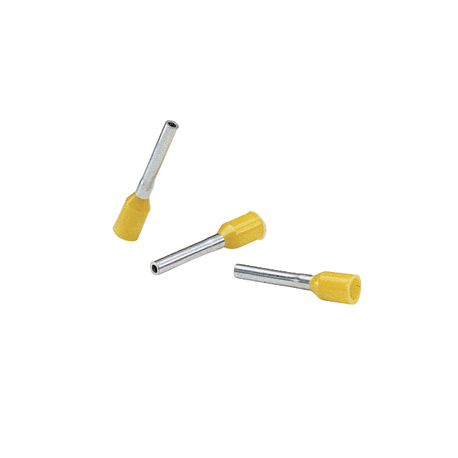

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit FSD83-12-C, Terminals & Terminal Kits

Download Spec Sheet
Brochure

Panduit FSD83-12-C, Terminals & Terminal Kits

Part #: FSD83-12-C
The single wire DIN end sleeve insulated ferrule in red has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #8 (10.0 mm²) wire ferrules and supports a maximum wire insulated diameter of 0.30 (7.5 mm). The insulated ferrule is 0.83 (21.0 mm) long and has a wire strip length of 0.625 (15.9 mm). It comes in standard packages of 100. . Sold in and priced as packages of 100

Please select all above options before adding to cart.

Carton Qty 0
Carton Weight 0.000 pounds
Category Connectors & Terminators
Finish Tin-Plated
In Stock Yes
Manufacturer Panduit
Max Operating Temperature 105 degrees celsius
Overall Length 0.83 inches
Package Qty 100
Package Volume 0.116 cubic feet
Package Weight 0.140 pounds
Product Class Terminals & Terminal Kits
Standard Carton Length 123.19 millimeters
Standard Package Height 1.35 inches
Standard Package Length 4.85 inches
Standard Package Width 3.3 inches
UPC 74983762675
