Panduit DR18-250-M, Wire Termination

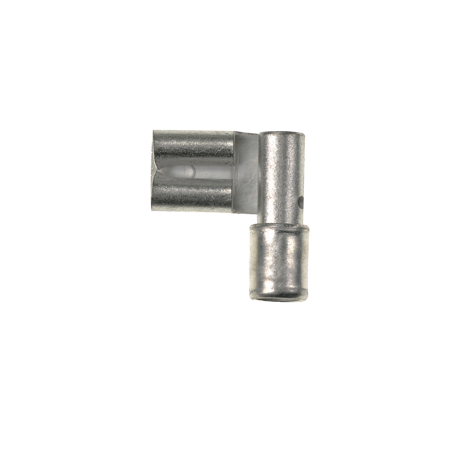

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit DR18-250-M, Wire Termination

Download Spec Sheet

Panduit DR18-250-M, Wire Termination

Part #: DR18-250-M
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000. Sold in and priced as packages of 1000.

Please select all above options before adding to cart.

Barrel Type Sleeved Barrel
Carton Qty 10000
Carton Weight 29.0000 pounds
Category Connectors & Terminators
Color Coding Metallic
Depth 0.54 inches
Finish Tinned
Height 0.54 inches
Manufacturer Panduit
Max Operating Temperature 150 degrees celsius
Overall Length 0.57 inches
Package Qty 1000
Package Volume 0.0597 cubic feet
Package Weight 2.9000 pounds
Product Class Wire Termination
Standard Carton Height 3.3 inches
Standard Carton Length 7.1 inches
Standard Carton Width 3.4 inches
Standard Package Height 3.4 inches
Standard Package Length 7.2 inches
Standard Package Width 3.4 inches
UPC 74983827657
Width 0.3 inches
