Panduit DNFR18-205B-L, Wire Termination

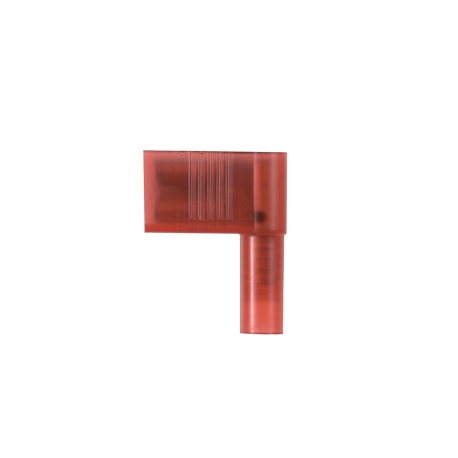

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit DNFR18-205B-L, Wire Termination

Download Spec Sheet

Panduit DNFR18-205B-L, Wire Termination

Part #: DNFR18-205B-L
The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in red nylon. It has a tab size of 0.205/0.187 x 0.032 (5.2/4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.78" (19.8 mm) long, 0.36" (9.1 mm) wide, and has a depth of 0.62" (15.7 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50. Sold in and priced as packages of 50.

Please select all above options before adding to cart.

Barrel Type Butted Seam
Carton Qty 500
Carton Weight 1.8000 pounds
Category Connectors & Terminators
Color Coding Red
Depth 0.62 inches
Finish Tinned
Height 0.2 inches
Manufacturer Panduit
Max Operating Temperature 105 degrees celsius
Overall Length 0.78 inches
Package Qty 50
Package Weight 0.1800 pounds
Product Class Wire Termination
Standard Carton Height 4.35 inches
Standard Carton Length 10.1 inches
Standard Carton Width 4.15 inches
Standard Package Height 1.9 inches
Standard Package Length 4.35 inches
Standard Package Width 1.95 inches
UPC 74983124633
Width 0.36 inches
