Panduit DNFR14-250B-L, Disconnects

Part #: DNFR14-250B-L

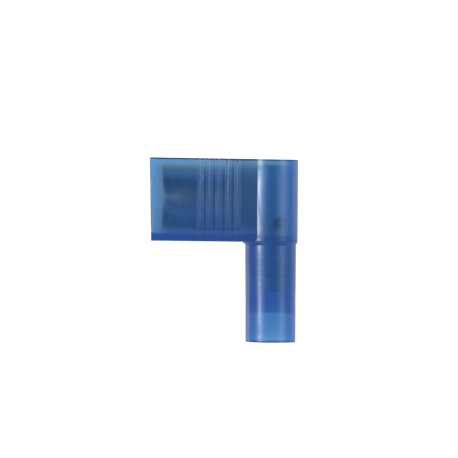

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in blue nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long, 0.36" (9.1 mm) wide, and has a depth of 0.63" (16.0 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50. Sold in and priced as packages of 50.

Please select all above options before adding to cart.

Barrel Type Butted Seam
Carton Qty 500
Carton Weight 2.050 pounds
Category Wiring, Ducts, & Accessories
Color Coding Blue
Depth 0.63 inches
Finish Tinned
Height 0.2 inches
In Stock Yes
Manufacturer Panduit
Max Operating Temperature 105 degrees celsius
Overall Length 0.78 inches
Package Qty 50
Package Volume 0.009 cubic feet
Package Weight 0.205 pounds
Product Class Disconnects
Standard Carton Height 4.35 inches
Standard Carton Length 9.9 inches
Standard Carton Width 4.1 inches
Standard Package Height 1.9 inches
Standard Package Length 4.3 inches
Standard Package Width 1.95 inches
UPC 74983124572
Width 0.36 inches
