Panduit DNF18-205-M, Wire Termination

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit DNF18-205-M, Wire Termination

Download Spec Sheet

Panduit DNF18-205-M, Wire Termination

Part #: DNF18-205-M

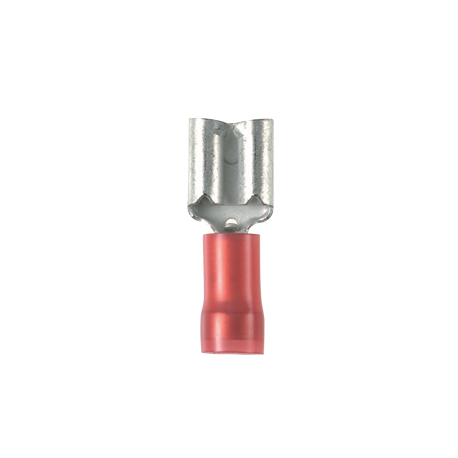

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.205/0.187 x 0.032" (5.2/4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry configuration and an insulation grip sleeve barrel. It comes in boxes of 1000. Sold in and priced as packages of 1000.

Please select all above options before adding to cart.

Barrel Type Insulation Grip Sleeve
Category Connectors & Terminators
Color Coding Red
Finish Tinned
Height 0.12 inches
Manufacturer Panduit
Max Operating Temperature 90 degrees celsius
Overall Length 0.76 inches
Package Qty 1000
Package Volume 0.0482 cubic feet
Package Weight 2.4000 pounds
Product Class Wire Termination
Standard Carton Length 182.88 millimeters
Standard Package Height 3.4 inches
Standard Package Length 7.2 inches
Standard Package Width 3.4 inches
UPC 74983826414
Width 0.25 inches
