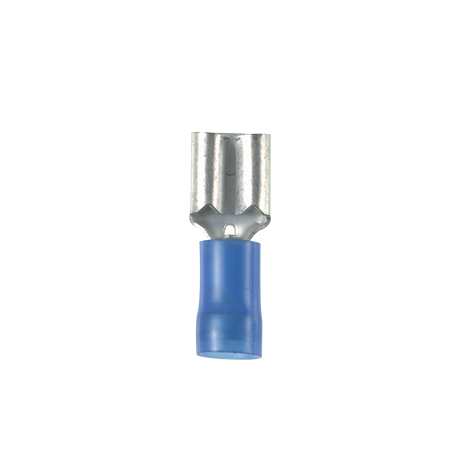

Panduit DNF14-188-C, Disconnects

*Product images are for illustrative purposes only and may differ from the actual product.

Panduit DNF14-188-C, Disconnects

Download Spec Sheet
Brochure

Panduit DNF14-188-C, Disconnects

Part #: DNF14-188-C
The vibration resistant female is made of brass and is tin-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100. Sold in and priced as packages of 100.

Please select all above options before adding to cart.

Carton Qty 500
Carton Weight 1.450 pounds
Category Wiring, Ducts, & Accessories
Color Coding Blue
Finish Tinned
Manufacturer Panduit
Max Operating Temperature 90 degrees celsius
Overall Length 0.76 inches
Package Qty 100
Package Volume 0.006 cubic feet
Package Weight 0.290 pounds
Product Class Disconnects
Standard Carton Height 3.65 inches
Standard Carton Length 9.25 inches
Standard Carton Width 2.2 inches
Standard Package Height 1.75 inches
Standard Package Length 3.6 inches
Standard Package Width 1.8 inches
UPC 74983827206
Width 0.23 inches
