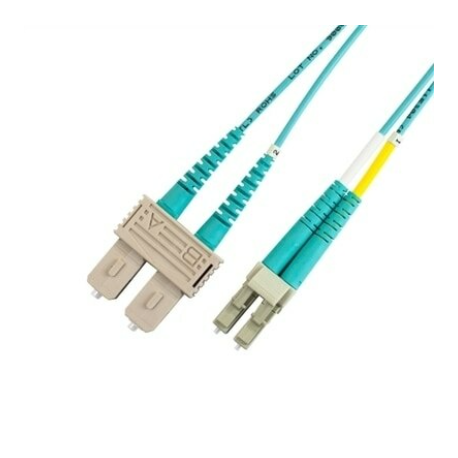

LYNN Duplex Fiber Optic Cable - Multimode OM4 - LC to SC - 10M Aqua

*Product images are for illustrative purposes only and may differ from the actual product.

LYNN Duplex Fiber Optic Cable - Multimode OM4 - LC to SC - 10M Aqua

Download Spec Sheet

LYNN Duplex Fiber Optic Cable - Multimode OM4 - LC to SC - 10M Aqua

Part #: D-L2S2-4R2-010M
  • Duplex (two strand) OM4 50/125um multimode fiber
  • Corning® ClearCurve bend-insensitive fiber
  • Male LC to Male SC duplex connectors
  • 10m (32.8ft) length
  • Aqua cable jacket
  • Cross-over polarity standard -- also available in straight polarity
  • Custom lengths and connector configurations available, including:

         LC, SC, ST, FC, MTRJ, MTP/MPO, E2000 and MU

  • OFNR riser rated jacket
  • ±0.25 dB return loss
  • Rated for >500 mating cycles
  • -20°C to 70°C (-4°F to 158°F)
  • RoHS and REACH compliant
  • Telcordia GR-326-CORE compliant
  • TIA/EIA-568-C.3, IEEE802.3z compliant
  • 40 and 100 Gigabit Ethernet: up to 150 meters at 850nm
  • 10 Gigabit Ethernet: up to 550 meters at 850nm, up to 300 meters at 1300nm

Please select all above options before adding to cart.

Construction
Category Fiber Optic Cable Assemblies
Category Description LYNN Duplex Fiber Optic Cable - Multimode OM4 - LC to SC - 10M Aqua
Cable Jacket Construction Indoor Riser
Glass Mode Multimode OM4
No. of Fibers Duplex (2F)
Connector 1 LC
Connector 2 SC
Length 10 m
Color Aqua
Weight 0.280
  • Duplex Fiber Optic Patch Cable, OM4 Multimode, LC to SC Connectors — 10m
