LYNN Duplex Fiber Optic Cable - Multimode OM1 - LC to LC -7M Orange

Home > Fiber Optic Cable Assemblies > LYNN Duplex Fiber Optic Cable - Multimode OM1 - LC to LC -7M Orange
LYNN Duplex Fiber Optic Cable - Multimode OM1 - LC to LC -7M Orange

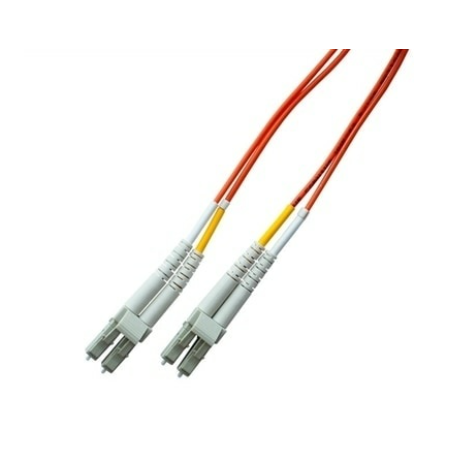

*Product images are for illustrative purposes only and may differ from the actual product.

LYNN Duplex Fiber Optic Cable - Multimode OM1 - LC to LC -7M Orange

Download Spec Sheet

LYNN Duplex Fiber Optic Cable - Multimode OM1 - LC to LC -7M Orange

Part #: D-L2L2-1R2-007M
  • Duplex (two strand) OM1 62.5/125um multimode fiber
  • Plus Corning® fiber
  • Male LC to Male LC duplex connectors
  • 7m (23.0ft) length
  • Orange cable jacket
  • Cross-over polarity standard -- also available in straight polarity
  • Custom lengths and connector configurations available, including:

          LC, SC, ST, FC, MTRJ, MTP/MPO, E2000 and MU

  • OFNR riser rated jacket
  • ±0.25 dB return loss
  • Rated for >500 mating cycles
  • -20°C to 70°C (-4°F to 158°F)
  • RoHS and REACH compliant
  • Telcordia GR-326-CORE compliant
  • TIA/EIA-568-C.3, IEEE802.3z compliant
  • 10 Gigabit Ethernet: up to 33 meters at 850nm, up to 300 meters at 1300nm
  • 1 Gigabit Ethernet: up to 275 meters at 850nm, up to 550 meters at 1300nm

Please select all above options before adding to cart.

Construction
Category Fiber Optic Cable Assemblies
Category Description LYNN Duplex Fiber Optic Cable - Multimode OM1 - LC to LC -7M Orange
Cable Jacket Construction Indoor Riser
Glass Mode Multimode OM1
No. of Fibers Duplex (2F)
Connector 1 LC
Connector 2 LC
Length 7 m
Color Orange
Weight 0.230
  • Duplex Fiber Optic Patch Cable, OM1 Multimode, LC to LC Connectors — 7m
