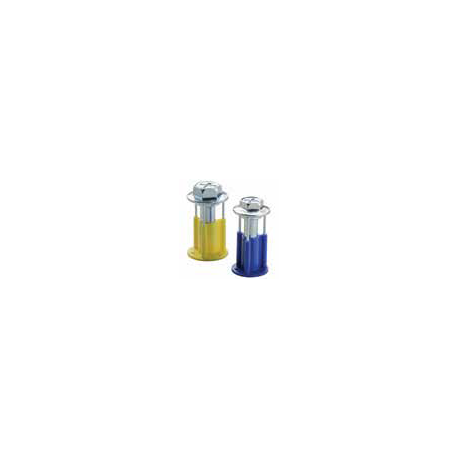

nVent CADDY Rod Lock Plywood Form Preset Anchor, 3/8" Rod #CRLW37EG

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

nVent CADDY Rod Lock Plywood Form Preset Anchor, 3/8" Rod

Part #: CRLW37EG

Qty *

Please select all above options before adding to cart.

Construction Standards Q&A

Construction
Category	CADDY ROD LOCK Structural Attachments
Category Description	nVent CADDY Rod Lock Plywood Form Preset Anchor, 3/8" Rod
Category Features	• Eliminate overhead drilling into building structure – nVent CADDY Rod Lock Preset Anchors are cast in place • Nails hold the anchor in place during the pour and easily break off with a strike of a hammer once the plywood forms are removed • Easy “push-to-install” design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position • Works with slightly damaged threads and minor burrs on the threaded rod • Prefabricated assemblies easily lift and lock into place, helping to save time and money • Plastic flange acts as insert locator when the forms are removed
Category Standards	• Rated for cracked concrete per ICC-ES AC446 according to ICC-ES ESR-3864 evaluation report • Suitable for seismic bracing according to ICC-ES ESR-3864 evaluation report
Material	Steel
Rod Size	3/ 8"
Static Load	1407
Weight	27.900
Finish	Electrogalvanized
