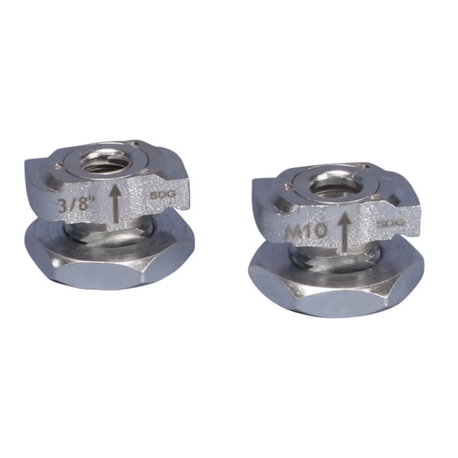

nVent CADDY Rod Lock Strut Nut, A Strut, 3/8" Rod #CRLSL37EG

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

nVent CADDY Rod Lock Strut Nut, A Strut, 3/8" Rod

Part #: CRLSL37EG

Qty *

Please select all above options before adding to cart.

Construction Applications Q&A

Construction
Category	CADDY ROD LOCK Load Attachments
Category Description	nVent CADDY Rod Lock Strut Nut, A Strut, 3/8" Rod
Category Features	• Allows for the quick creation, installation, and adjustment of multi-level trapeze assemblies • Installs in strut profiles without the need to insert fingers or too ls into the strut • Easy “push-to-install” design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position • Integrated adjustment nut enables fine tuning the system height up or down • Lock nut can be finger tightened, locking the rod in place • Accommodates slight variances in rod-to-rod position of the trapeze • Can be used to prefabricate assemblies which can be quickly pushed onto previously installed threaded rods • Works with slightly damaged threads and minor burrs on the threaded rod
Material	Steel
Rod Size	3/ 8"
Static Load 1	1500
Static Load 2	900
Weight	23.500
Finish	Electrogalvanized

Static Load 1 represents 12 GA strut channel type A. Static Load 2 represents 14 GA strut
channel type C.Wrench Size 1 represents nVent CADDY Rod Lock hex nut size. Wrench Size
2 represents stem nut size.Must be installed with the open side of the strut channel facing
up.nVent CADDY Rod Lock Strut Nuts must be installed at a minimum of 1” (25.4 mm) from both ends of the strut channel.
