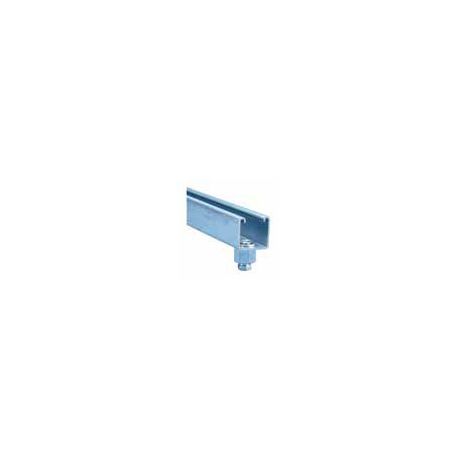

nVent CADDY Rod Lock Strut

Part #: CRLP250L22

Qty *

Please select all above options before adding to cart.

Construction Applications Q&A

Construction
Category	CADDY ROD LOCK Load Attachments
Category Description	nVent CADDY Rod Lock Strut, A Strut, 1/2" Rod, 24" (610 mm)
Category Features	• Allows for the quick creation, installation, and adjustment of multilevel trapeze assemblies • Ready to use out of the box and eliminates the need for cutting and preparing sections of strut • Easy “push-to-install” design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position • Integrated adjustment nut enables fine tuning the system height up or down • Accommodates slight variances in rod-to-rod position of the trapeze • No loose parts or special tools needed for installation • Lock nut can be finger tightened, locking the rod in place • Works with all accessories that fit standard A or C type strut channels
Material	Steel
Length	24"
Rod Size	1/ 2"
Static Load	1698
Thickness	12"
Weight	397.000
Finish	Electrogalvanized; Pregalvanized

Prefabricated sections of strut with Rod Lock technology designed to replace traditional strut in a wide variety of applications, such as cable tray, duct, and conduit/pipe trapeze. Ultimate load ratings for nVent CADDY Rod Lock Strut assumes a uniformly distributed load and includes a hole factor of 0.92. It is based on the material yield and maximum allowable deflection; an additional Safety Factor of 2 is recommended. nVent CADDY Rod Lock Strut must be installed with the open side of the channel facing up.For indoor applications only.
