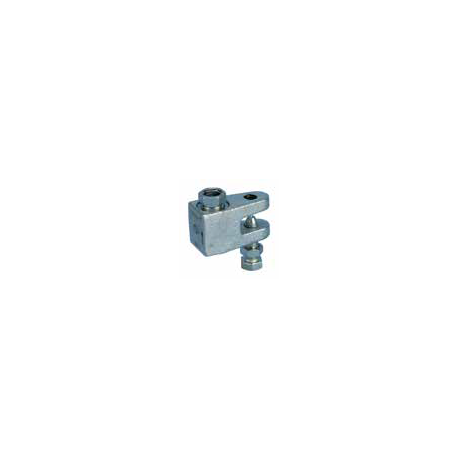

nVent CADDY Rod Lock Beam Clamp, 3/8" Rod #CRLB37EG

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

nVent CADDY Rod Lock Beam Clamp, 3/8" Rod

Part #: CRLB37EG

Qty *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category	CADDY ROD LOCK Structural Attachments
Category Description	nVent CADDY Rod Lock Beam Clamp, 3/8" Rod, 0.125"-0.375" (3-10 mm) Flange
Category Standards	• Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 19 and 23)
Material	Cast Iron
Flange	0.125”– 0.375”
Rod Size	3/ 8"
Static Load 1	250
Static Load 2	500
Weight	41.900
Finish	Electrogalvanized

• Prefabricated assemblies easily lift and lock into place, helping to save time and money
• Easy “push-to-install” design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
• Lock nut can be finger tightened, locking the rod in place
• Works with slightly damaged threads and minor burrs on the threaded rod

• Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 19 and 23)
