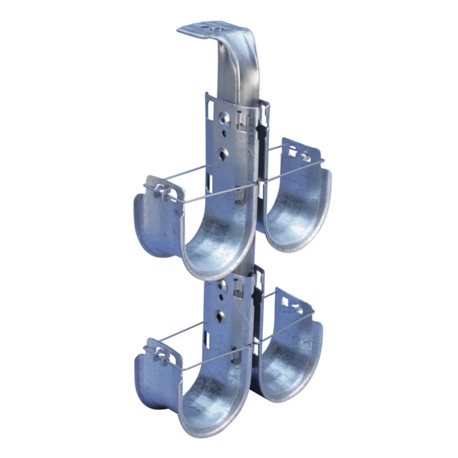

nVent CADDY Cat HP J-Hook Tree, Ceiling Mount

Part #: CAT32HPSCM4

Qty *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category	Cable Support Systems
Sub Category	CAT HP Trees
Category Description	nVent CADDY Cat HP J-Hook Tree, Ceiling Mount, Single Sided, 2" (50 mm) dia, 4 Tier
Category Features	• Ideal for attaching to concrete, steel or wood surfaces • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic • Ready to use out of the box, saving installation time and labor • Requires no screws, rivets or special tools for assembly • Single- or double-sided tree configurations provide multiple J-Hooks with one structural attachment • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
Category Standards	• Complies with EN 50174-2 • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Material	Steel
A	1 7/16"
B	2"
Diameter	2"
Finish	Pregalvanized
Height	20 1/4"
Hole Size 1	0.41"
Hole Size 2	0.18"
Static Load 1	240
Static Load 2	180
Wire Size	3 5/16"
In Stock	Non-stock

• Static loads represent maximum load limit of J-Hook tree. Static load limit of each J-Hook is 60 lb (270 N).
• Refer to Static Load 1 when fastening J-Hook tree using Hole Size 1. Refer to Static Load 2 when fastening J-Hook tree using Hole Size 2.
• Non-continuous supports may not exceed spacing of 5' (1.5 m) per TIA 569-C.9.7 and EN 50174-2.
