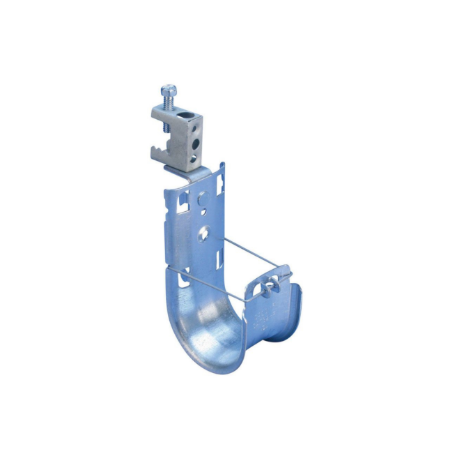

nVent Caddy Cat HP J-Hook with BC Beam Clamp, Swivel #CAT32HPBCB

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

nVent Caddy Cat HP J-Hook with BC Beam Clamp, Swivel

Part #: CAT32HPBCB

Qty *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category	Cable Support Systems
Sub Category	CAT HP Assemblies
Category Description	nVent CADDY Cat HP J-Hook with BC Beam Clamp, Swivel, 2" (50 mm) dia, 1/2" Max (16 mm Max) Flange
Category Features	• Easy installation to beam flanges • Swivels to support various directional runs of cable FT Ø F • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables CAT HP ASSEMBLIES • Cost effective alternative to expensive cable tray
Category Standards	• Complies with EN 50174-2 • Meets ISO®/IECSM 14763-2, TIA 568-C and TIA 569-C
Material	Steel; Spring Steel
Area	3.97 in²
Cable Capacity Cat5e	90
Cable Capacity6	60
Cable Capacity6A	35
Diameter	2"
Finish	Pregalvanized; nVent CADDY Armour
Flange Thickness	1/2”
In Stock	Stock

• Non-continuous supports may not exceed spacing of 5’ (1.5 m) per TIA 569-C.9.7. • Cable capacity is calculated based on a 70% fill rate.
