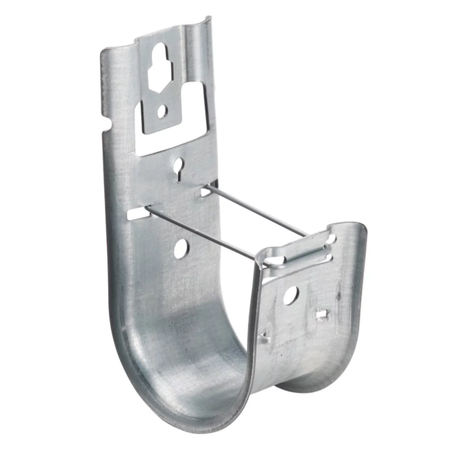

nVent CADDY Cat HP J-Hook - Painted Colors

Part #: CAT21HPRD

Qty *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category	Cable Support Systems
Sub Category	CAT HP J-Hook
Category Description	nVent CADDY Cat HP J-Hook, PG, Painted, Red, 1 5/16" (33.3 mm) dia
Category Features	• Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables • Multiple color options aid in the identification and organization of the pathway application • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives • Compliant with UL® 2043 and suitable for use in air handling (plenum) spaces
Category Standards	• Tested according to DIN 4102-12 • Complies with EN 50174-2 • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Material	Steel
Area	2.29in²
Cable Capacity Cat5e	50
Cable Capacity6	40
Cable Capacity6A	25
Color	Red
Diameter	1 5/16"
Finish	Pregalvanized; Painted
In Stock	Stock

nVent CADDY Cat HP J-Hooks are the heart of the nVent CADDY Cat HP System. The J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables and fibre optics. nVent CADDY Cat HP J-Hooks are available in a wide range of sizes to offer a solution that meets industry standards for Cat 6A and easily accommodates Cat 7, large-diameter fibre optic, innerduct and coax cable. Individual nVent CADDY Cat HP J-Hooks can be fastened directly to the building structure or can be used to expand existing nVent CADDY Cat HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation. • Non-continuous supports may not exceed spacing of 5' (1.5 m) per TIA 569-C.9.7 and EN 50174-2.
• Cable capacity is calculated based on a 70% fill rate.
