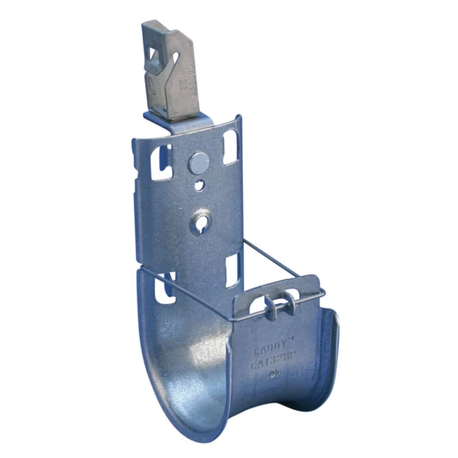

nVent CADDY Cat HP J-Hook with Z Purlin Clip, Swivel

Part #: CAT21HP123

Qty *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category	Cable Support Systems
Sub Category	CAT HP Assemblies
Category Description	nVent CADDY Cat HP J-Hook with Z Purlin Clip, Swivel, 1 5/16" (33.3 mm) dia, 0.06"-0.1" (1.5-2.5 mm) Flange
Category Features	• Requires only a hammer to install • Rotates 360 degrees to support various directional runs of cable • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables • Cost effective alternative to expensive cable tray
Category Standards	• Complies with EN 50174-2 • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Material	Steel; Spring Steel
Area	1174mm²
Cable Capacity Cat5e	50
Cable Capacity6	40
Cable Capacity6A	25
Diameter	33.3 mm
Finish	Pregalvanized; nVent CADDY Armour
Flange Thickness	1.5 - 2.5 mm
In Stock	Stock

• Non-continuous supports may not exceed spacing of 5' (1.5 m) per TIA 569-C.9.7 and EN 50174-2.
• Cable capacity is calculated based on a 70% fill rate.
