Belden 9418ZH Electronic, 4 C #18 Str TC, PO Ins, OS, LSZH Jkt, CMG #BEL9418ZH

Home > Belden > Belden 9418ZH Electronic, 4 C #18 Str TC, PO Ins, OS, LSZH Jkt, CMG

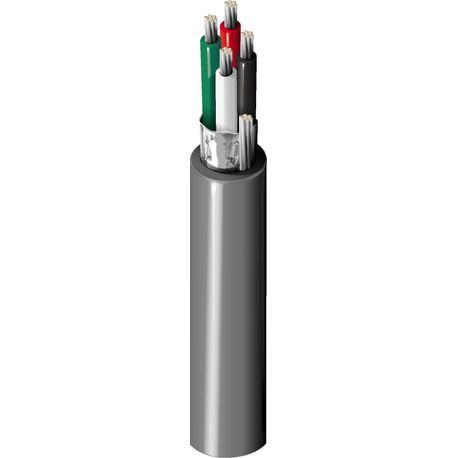

Belden 9418ZH Electronic, 4 C #18 Str TC, PO Ins, OS, LSZH Jkt, CMG

*Product images are for illustrative purposes only and may differ from the actual product.

Belden 9418ZH Electronic, 4 C #18 Str TC, PO Ins, OS, LSZH Jkt, CMG

Brochure

Belden 9418ZH Electronic, 4 C #18 Str TC, PO Ins, OS, LSZH Jkt, CMG

Part #: BEL9418ZH
x

Please select all above options before adding to cart.

Belden Part Number 9418ZH
Cable Type Belden
Category Belden
Category Insulation Description PP - Polypropylene
Conductor Material Tinned Copper
Conductors 4
Gauge 18
Insulation Description PP - Polypropylene
Insulation Material Polyolefin (PO, PE, PP)
Jacket Material LSZH / FRNC
NEC/(UL) Specification CMG
Outer Jacket LSZH - Low Smoke Zero Halogen
Product Category Armored Audio, Control & Instrumentation Cable
Product Short Description Electronic, 4 Conductor 18AWG (19x30) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, LSZH Outer Jacket, CMG
Shield Foil(s) or Copper Tape(s)
Shielding Foil(s) or Copper Tape(s)
Stranding 19x30
Stranding Material Tinned Copper - Stranded
Temperature 75°C
Voltage Rating 300V
