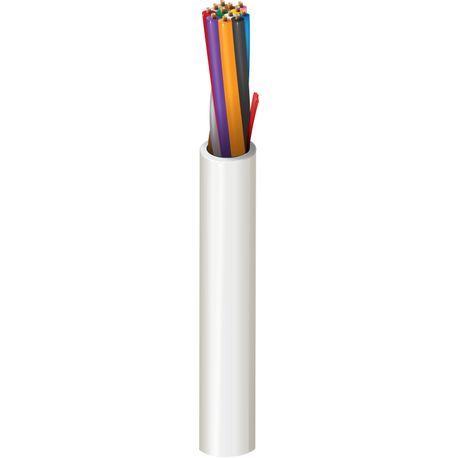

Belden 6309UE 8771000 Security & Sound, #18-12c, BC, CMP #BEL6309UE

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Brochure

Belden 6309UE 8771000 Security & Sound, #18-12c, BC, CMP

Part #: BEL6309UE

Qty *

x Length (1000 ft) *

Please select all above options before adding to cart.

Product Specification Q&A

Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls
Belden Part Number	6309UE 8771000
Cable Type	Belden
Category	Safety, Sound, & Security
Category Insulation Description	LS PVC - Low Smoke Polyvinyl Chloride
Conductor Material	Bare Copper
Conductors	12
Gauge	18
Insulation Description	PVC - Polyvinyl Chloride
Insulation Material	PVC-LS
Jacket Material	PVC-LS
NEC/(UL) Specification	CMP
Outer Jacket	PVC-LS
Product Category	Security Alarm & Sound
Product Short Description	Security & Sound Cable, Plenum-CMP 12-18 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
Shield	Unshielded
Shielding	Unshielded
Stranding	7x26
Sub Category	Safety, Sound, & Security
Voltage Rating	300V
