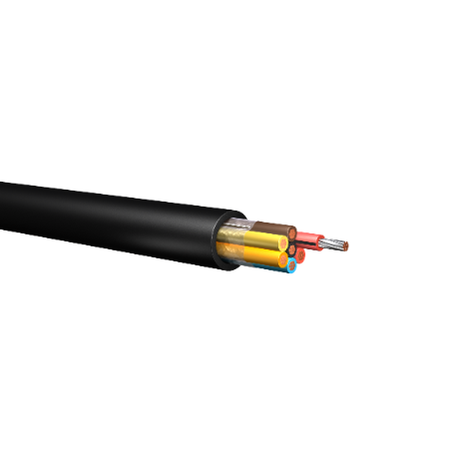

Tray Cable - LSZH Power Cable XLP Insulation Jacket #14-04LSE1

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

Tray Cable - LSZH Power Cable XLP Insulation Jacket

Part #: 14-04LSE1

Qty *

x Length (ft) *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Category	Tray Cable
Category Description	600 Volt UL Type TC-LS, 90°C XLP XHHW-2 Insulation Low Smoke Zero Halogen Jacket Tinned Copper Conductors FM Approved
Category Conductor Description	Tin coated soft annealed copper per ASTM B-33, Class B stranding per ASTM B-8
Category Features	• Tray rated • Sunlight-resistant • Approved for direct burial • Tinned conductors provide ease of termination and added protection in caustic environments • Very low smoke production when burned • LifeGuard™ jacket produces zero halogens during fire - less toxic and corrosive • LifeGuard™ jacket is environmentally safe - lead, sulfur and halogen free • Highly chemical resistant • Very flame retardant • Burns to an ash - does not exhibit thermoplastic drip • Excellent compression and impact resistance • Superior tensile strength and abrasion resistance • Flexible jacket with low coefficient of friction
Category Insulation Description	Cross-linked polyethylene (XLP) per UL Standard 44 for Type XHHW-2 conductors
Category Jacket Description	Sunlight-resistant and flame retardant, Low Smoke Zero Halogen polyolefin per UL Standard 1277. A ripcord is applied longitudinally under the jacket to facilitate stripping
Category Foot Note	To view the color chart, copy and paste the following URL: https://www.omnicable.com/technical-resources/icea-method-1-table-e1

LifeGuard™ Low Smoke Zero Halogen* cable is for use in power, control and lighting circuits in a broad range of commercial and industrial applications. LifeGuard™ jacket is highly flame retardant, produces very small amounts of smoke when burned and contains no halogens.
LifeGuard™ cable is ideal for applications where a high degree of safety and equipment protection is required. LifeGuard™ cable is UL listed as Type TC-LS and approved for installation indoors or outdoors, aerially, in conduits, ducts, cable trays and direct burial in circuits not exceeding 600 volts. It may be installed in temperatures as low as -30°C and used in NEC Class I, Division 2 hazardous locations. It is UL approved for continuous operation at 90°C in wet and dry locations, 130°C for emergency overload conditions, and 250°C for short circuit conditions. Exposed Run (ER) rating available upon request.

FM Approved – Class 3972 Specification Test Standard – Cable Fire Propagation Group 1• UL Standard 1581 (70,000 BTU/hr) Flame Test • IEEE 383 (70,000 BTU/hr) Flame Test• ICEA T-29-520 (210,000 BTU/hr) Flame Test• IEEE 1202/CSA FT4 (70,000 BTU/hr) Flame Test• UL Standard 1685 (70,000 BTU/hr) Flame Test Propagation and Smoke Release Test• Flame Test listings may vary by cable size• NEC Type TC per articles 336, 392, and 501.4 (b)and Class 1 circuits per NEC article 725
