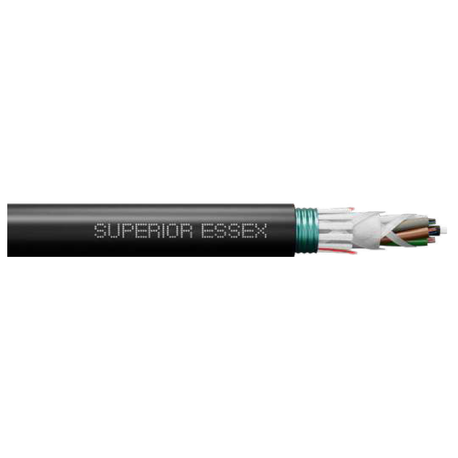

Dri-Lite® Loose Tube Single Jacket Single Armor Series 12D

*Product images are for illustrative purposes only and may differ from the actual product.

Dri-Lite® Loose Tube Single Jacket Single Armor Series 12D

Download Spec Sheet
Brochure

Dri-Lite® Loose Tube Single Jacket Single Armor Series 12D

Part #: 120363D01
Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The durable loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape. A corrugated steel armor is applied and then encased with a black jacket. Rip cords are included under the armor for ease of entry.
x



Please select all above options before adding to cart.

Construction
Category Description • Available with up to 432-fiber • Multiple fiber types including composites • Dry (SAP) core standard • Standard tube size for all fiber counts • Corrugated steel armor • Gel-free tubes • High fiber density • Multiple network applications • Reduces cable prep and installation time • Reduces the number of tools required • Improves compressive strength and rodent protection • Speeds fiber access and cleanup
Category Standards Telcordia® GR-20-CORE RDUP PE-90 Designation MLT ICEA S-87-640-2011 RoHS-compliant
Short Description Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The durable loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape. A corrugated steel armor is applied and then encased with a black jacket. Rip cords are included under the armor for ease of entry.
Cable Type Outside OSP Cable
Fiber Count 6
Jacket Material UV Resistant Jacket
  • Direct bury, underground duct and lashed aerial• Trunk, distribution and feeder cable• Local loop, metro, long-haul and broadband network
  • Telcordia® GR-20-CORE RDUP PE-90 Designation MLT
  • ICEA S-87-640-2011
  • RoHS-compliant
