Dri-Lite® Loose Tube Single Jacket All Dielectric Series 11D

*Product images are for illustrative purposes only and may differ from the actual product.

Dri-Lite® Loose Tube Single Jacket All Dielectric Series 11D

Download Spec Sheet
Brochure

Dri-Lite® Loose Tube Single Jacket All Dielectric Series 11D

Part #: 110363D01

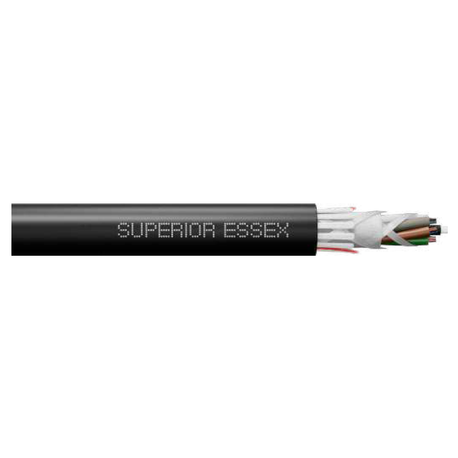

Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The durable loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape, then encased with a black jacket. A rip cord is included under the jacket for ease of entry.
x



Please select all above options before adding to cart.

Construction
Category Description • Available with up to 432-fiber • Multiple fiber types including composites • Central strength members available in metallic or dielectric • Dry (SAP) core standard • Standard tube size for all fiber counts • Gel-free tubes • High fiber density • Multiple network applications • Metallic option offers ease of location, dielectric design eliminates grounding issues • Reduces cable prep and installation time • Reduces the number of tools required • Speeds fiber access and cleanup
Category Standards Telcordia® GR-20-CORE RDUP PE-90 Designation MLT ICEA S-87-640-2011 RoHS-compliant
Short Description Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The durable loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape, then encased with a black jacket. A rip cord is included under the jacket for ease of entry.
Cable Type Outside OSP Cable
Fiber Count 6
Jacket Material UV Resistant Jacket
  • Underground duct and lashed aerial• Trunk, distribution and feeder cable• Local loop, metro, long-haul and broadband network
  • Telcordia® GR-20-CORE RDUP PE-90 Designation MLT
  • ICEA S-87-640-2011
  • RoHS-compliant
