3" SDR13.5 REG SW Gray Empty 96" RL /1,000

Home > Dura-Line > 3" SDR13.5 REG SW Gray Empty 96" RL /1,000
3" SDR13.5 REG SW Gray Empty 96" RL /1,000

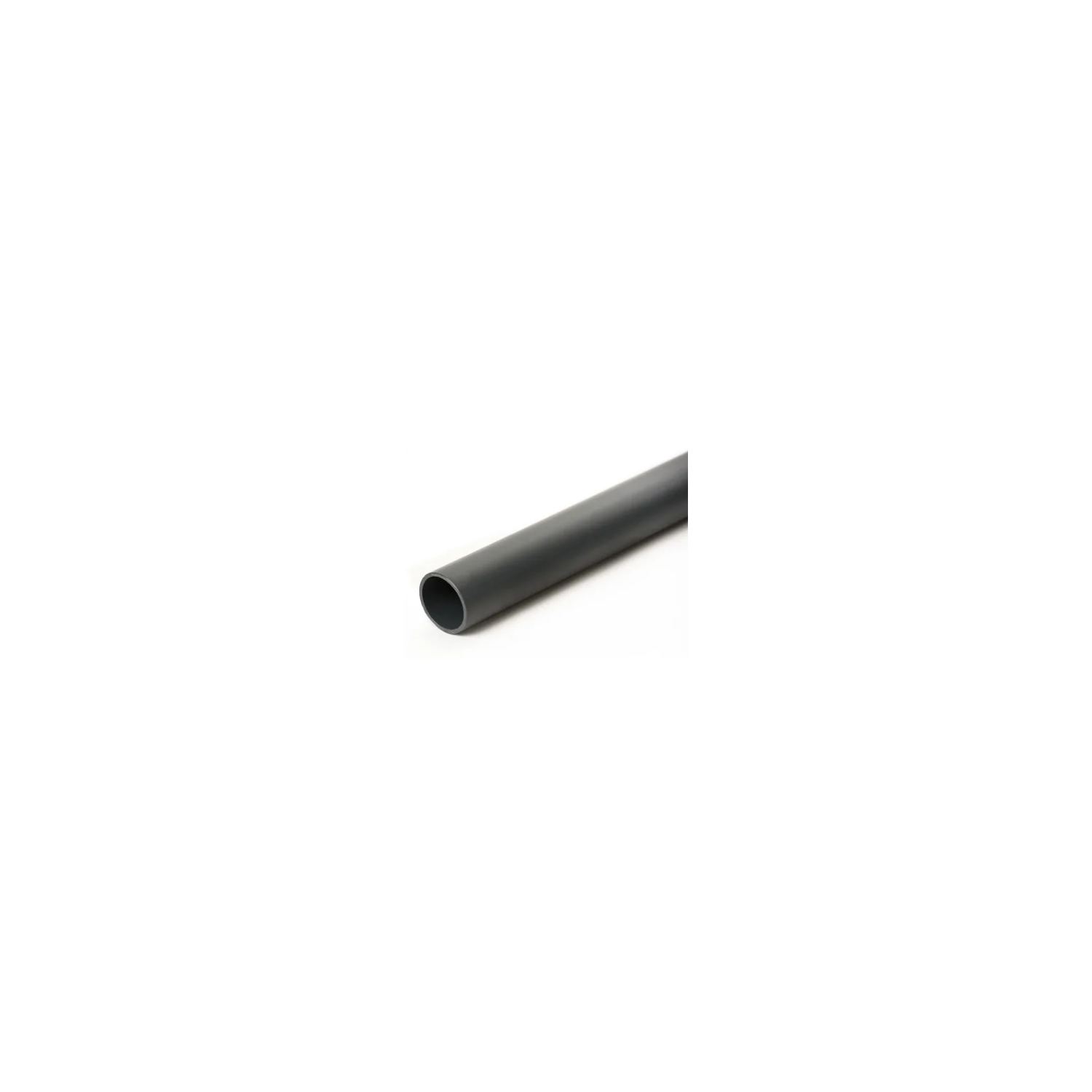

*Product images are for illustrative purposes only and may differ from the actual product.

3" SDR13.5 REG SW Gray Empty 96" RL /1,000

Download Spec Sheet
Brochure

3" SDR13.5 REG SW Gray Empty 96" RL /1,000

Part #: 10000800

Manufactured from flexible HDPE (High Density Polyethylene)
Sold by the reel

x



Please select all above options before adding to cart.

Construction
Outside Diameter Inches 3.5
Wall Thickness 0.259"
Expanded Inside Diameter 2.92"
Material Weight (Lbs./M') 1146
Bend Radius 39"
Pulling strength per Lb. 6,335 lbs.
  • All Smoothwall conduit dimensions meet or exceed one or more of the following: ASTM F-2160, ASTM D-3350, ASTM D-3485, NEMA TC-7, UL 651A, UL 1990, Bellcore GR-356, CSA C22.2 No. 327-18
