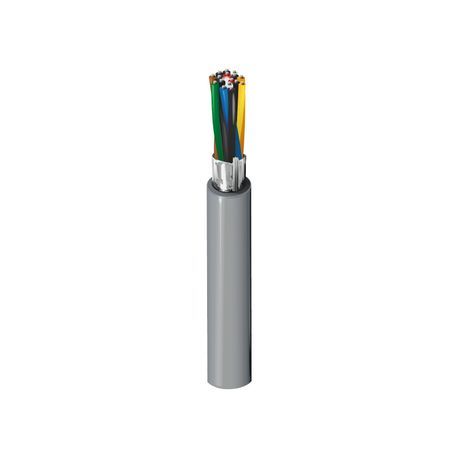

Belden 9508 0601000 RS-232, #24-8pr, SR-PVC, O/A Foil, PVC Jkt, CMG, 75Ω #BEL9508

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Brochure

Belden 9508 0601000 RS-232, #24-8pr, SR-PVC, O/A Foil, PVC Jkt, CMG, 75Ω

Part #: BEL9508

Product Specification Q&A

Applications	RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level Audio; Panel Wiring
Belden Part Number	9508 0601000
Cable Type	Belden
Category	Audio, Control & Instrumentation Cable
Category Insulation Description	S-R PVC - Semi-Rigid Polyvinyl Chloride
Conductor Material	Tinned Copper
Conductors	16
Gauge	24
Insulation Description	SR-PVC - Polyvinyl Chloride (Semi-Rigid)
Insulation Material	PVC
Jacket Material	PVC
NEC/(UL) Specification	CMG
Outer Jacket	PVC
Product Category	Computer RS-232
Product Short Description	Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, 8 twisted pairs, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire (continued), PVC jacket.
Shield	Foil(s) or Copper Tape(s)
Shielding	Foil(s) or Copper Tape(s)
Stranding	7x32
Sub Category	Audio, Control & Instrumentation Cable
Temperature	80°C (UL AWM 2464)
Voltage Rating	300V
